Series 4 Service Instructions

Series 4: Forward Riser Replacement

For Video Instructions, please see the following link:
Replacing the Forward Riser Assembly

Step 1- Detach the bungee from the recoil belt.

Step 2- Remove handle assembly (see handle removal replacement instructions)

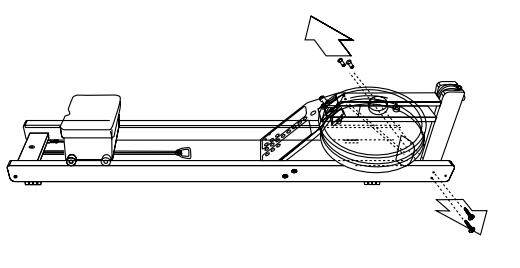

Step 3- Remove Tie Rod bolts as shown.

Step 4- Remove the fasteners connecting the forward riser bottom bracket to the side rails as shown.

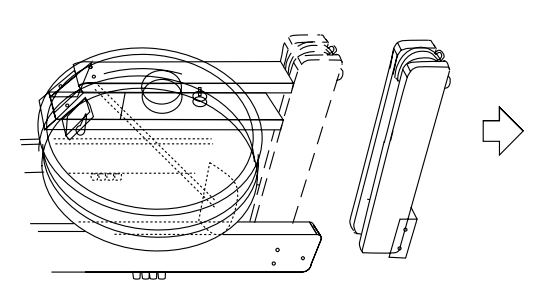

Step 5- Remove the forward riser assembly from the tank assembly as shown.

Step 6- Replace the forward riser assembly against the tank assembly and between the rails as shown.

Step 2 - Top Deck Replacement

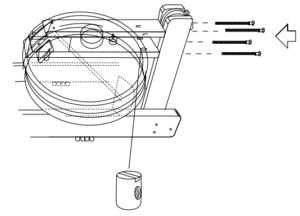

Step 7- Replace the Tie Rod bolts as shown. Ensure that the cross dowels into which the Tie Rod bolts screw are aligned with the Tie Rods. To do this use a screwdriver to ensure that the cross dowel slot is in line with the cross dowel as shown.

Step 2 - Top Deck Replacement

Step 8- Fasten the forward riser bottom bracket to the side rails as shown.

Step 2 - Top Deck Replacement

Step 9- Replace the handle assembly (see handle replacement instructions)

Step 10- Replace the Recoil Belt (see recoil belt replacement instructions)
